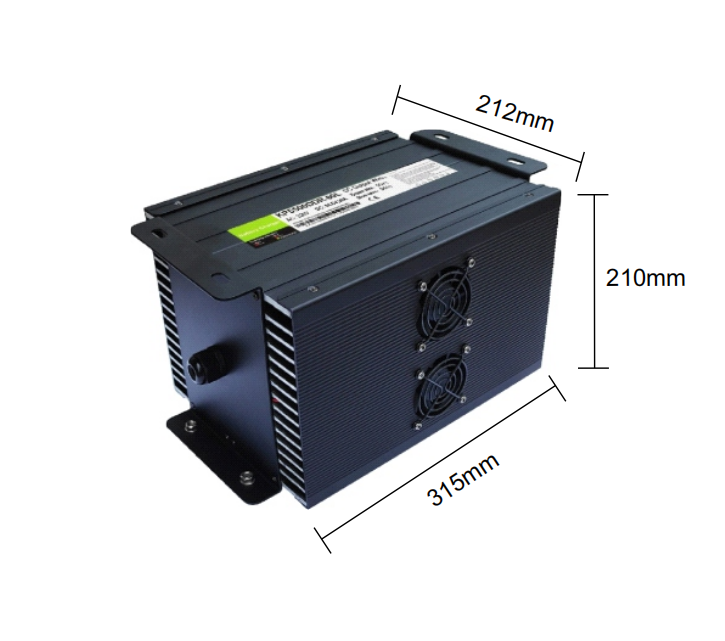

EJ-6600W Ultimate-Power Battery Charger
Ultimate-power 6600W charger for lead-acid and lithium batteries. The flagship solution for massive commercial fleets, industrial enterprises and premium charging infrastructure with IP65 protection and maximum voltage flexibility.
Input Voltage
AC 90-264V
Protection Level
IP65
Working Temp
-40°C ~ +60°C
Max Power
EJ-6600W
Technical Specifications
General Parameters
| AC Input Voltage | AC 90-264V |
| AC Input Current | ≤32A |
| Frequency Range | 40~70Hz |
| Power Factor | ≥0.98 |
| Efficiency | ≥93% |
| Working Temperature | -40°C ~ +60°C |
| Protection Level | IP65 |
| Charging Mode | Adjustable Dynamic Curve |
| CAN Communication | Optional |
| LED Indicator | Standard |
| Dimensions | 345×285×140mm |
Output Voltage Options
| Voltage | Max Current |
|---|---|
| 12V | 170A |
| 24V | 140A |
| 36V | 130A |
| 48V | 110A |
| 60V | 90A |
| 72V | 75A |
Key Features
Ultimate Power Output
6600W output for enterprise-scale operations.
Maximum Voltage Flexibility
Supports 12V to 72V for diverse applications.
IP65 Enterprise Grade
Sealed design for mission-critical reliability.
Arctic to Tropical
Operates reliably from -40°C to +60°C.
Dual Battery Chemistry
Intelligently charges both lead-acid and lithium batteries.
Enterprise-Grade Efficiency
93% efficiency for maximum cost savings.
Applications
The EJ-6600W is engineered for lead-acid and lithium battery charging in commercial and industrial applications.
Massive Commercial Fleets
Enterprise fleet operations
Industrial Enterprises
Large manufacturing and logistics
Premium Charging Infrastructure
High-end charging stations
Enterprise Fleet Management
Large-scale vehicle operations
Optional Connectors
AC Input Connectors
Supports all standard international plugs:
- Euro plug
- US plug
- UK plug
- AU plug
- Custom plugs available
DC Output Connectors
Multiple connector options available:
Frequently Asked Questions
Can the EJ-6600W charge both lead-acid and lithium batteries?
Yes, the EJ-6600W can be configured for both battery types with adjustable charging curves. Please specify your battery chemistry when ordering.
What is the charging time?
Charging time depends on battery capacity. Contact our team for specific estimates based on your battery specifications.
Is CAN communication available?
CAN communication is optional. If you need CAN bus integration for monitoring systems, please request this feature during ordering.
How does it perform in extreme conditions?
The EJ-6600W is engineered for extreme environments with IP65 protection and -40°C ~ +60°C temperature tolerance for mission-critical reliability.
Can the charger be customized?
Yes! OneE Charger offers custom solutions including CAN communication, specific voltage/current configurations, and custom connectors. Contact us to discuss your requirements.
Ready to Get Started?
Contact our team to request a quote, discuss your specific requirements, or learn more about the EJ-6600W charger.
