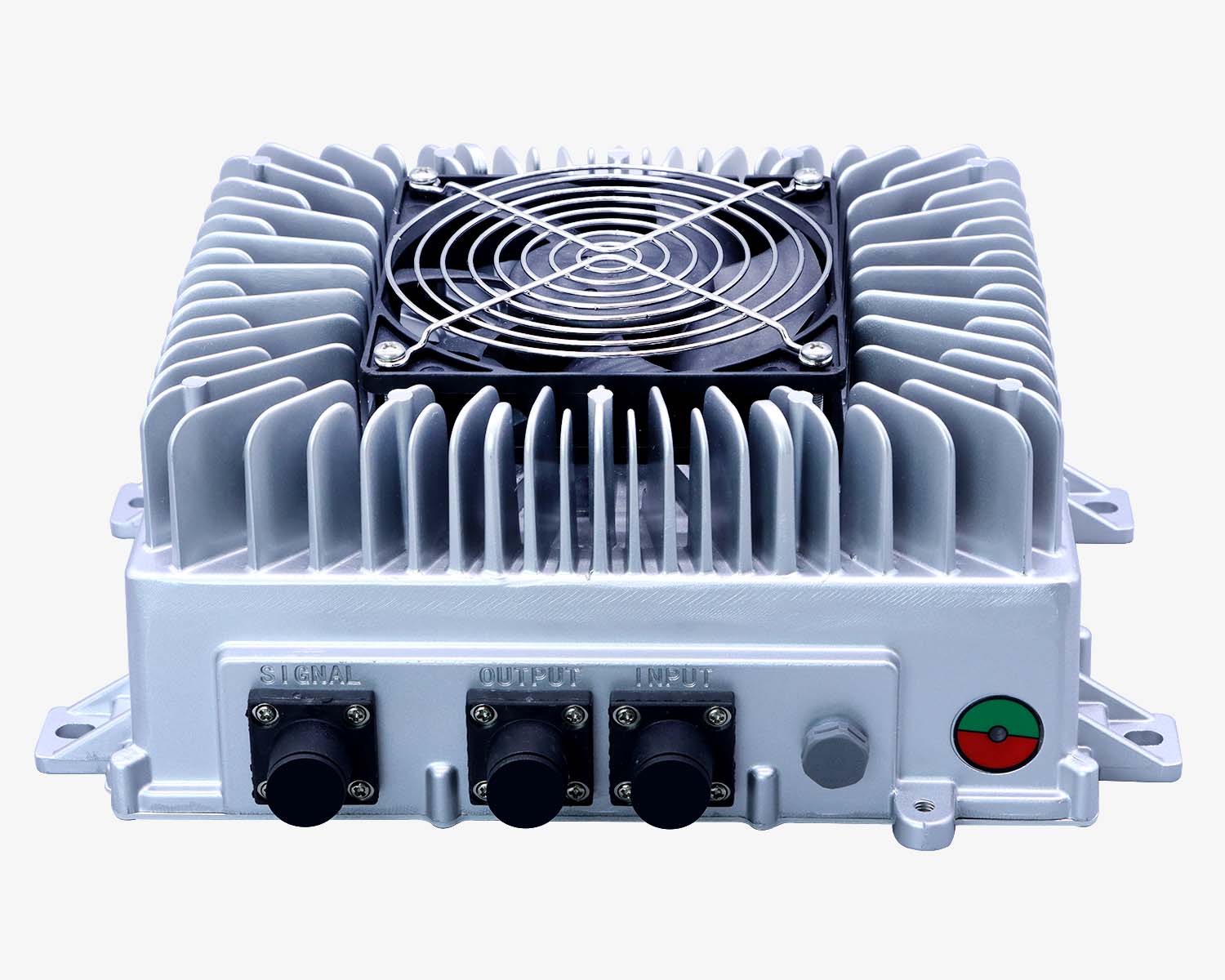

ES-3300W Industrial-Grade Battery Charger
Industrial-grade 3300W charger for lead-acid and lithium batteries. Engineered for industrial enterprises, charging infrastructure and large-scale operations with IP67 protection and extreme temperature tolerance.
Input Voltage
AC 90-264V
Protection Level
IP67
Working Temp
-40°C ~ +60°C
Max Power
ES-3300W
Technical Specifications
General Parameters
| AC Input Voltage | AC 90-264V |
| AC Input Current | ≤16A |
| Frequency Range | 40~70Hz |
| Power Factor | ≥0.98 |
| Efficiency | ≥93% |
| Working Temperature | -40°C ~ +60°C |
| Protection Level | IP67 |
| Charging Mode | Adjustable Dynamic Curve |
| CAN Communication | Optional |
| LED Indicator | Standard |
| Dimensions | 345×285×140mm |
Output Voltage Options
| Voltage | Max Current |
|---|---|
| 48V | 42A |
| 60V | 40A |
| 72V | 40A |
| 84V | 40A |
| 96V | 32A |
| 120V | 25A |
| 144V | 23A |
| 160V | 15A |
| 312V | 10A |
Key Features
Industrial Power
3300W output for enterprise-scale operations.
Maximum Voltage Flexibility
Supports 48V to 312V for diverse industrial applications.
IP67 Rugged Design
Military-grade protection for extreme environments.
Arctic to Tropical
Operates reliably from -40°C to +60°C.
Dual Battery Chemistry
Charges both lead-acid and lithium batteries.
Enterprise-Grade Efficiency
93% efficiency for large-scale cost savings.
Applications
The ES-3300W is engineered for lead-acid and lithium battery charging in commercial and industrial applications.
Industrial Enterprises
Large manufacturing and logistics
Charging Infrastructure
Commercial charging stations
Fleet Management
Enterprise vehicle operations
Heavy Equipment
Industrial machinery charging
Optional Connectors
AC Input Connectors
Supports all standard international plugs:
- Euro plug
- US plug
- UK plug
- AU plug
- Custom plugs available
DC Output Connectors
Multiple connector options available:
Frequently Asked Questions
Can the ES-3300W charge both lead-acid and lithium batteries?
Yes, the ES-3300W can be configured for both battery types with adjustable charging curves. Please specify your battery chemistry when ordering.
What is the charging time?
Charging time depends on battery capacity. Contact our team for specific estimates based on your battery specifications.
Is CAN communication available?
CAN communication is optional. If you need CAN bus integration for monitoring systems, please request this feature during ordering.
How does it perform in extreme conditions?
The ES-3300W is engineered for extreme environments with IP67 protection and -40°C ~ +60°C temperature tolerance for mission-critical reliability.
Can the charger be customized?
Yes! OneE Charger offers custom solutions including CAN communication, specific voltage/current configurations, and custom connectors. Contact us to discuss your requirements.
